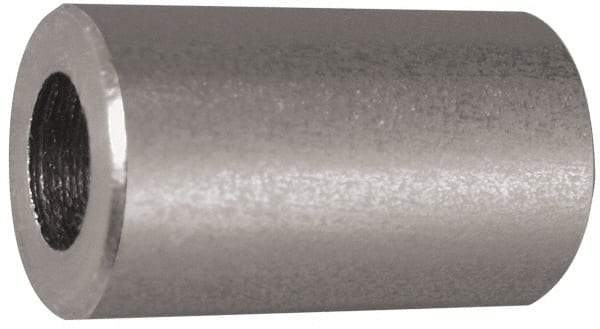

Electro Hardware - 3.2 to 3.6mm ID x 6mm OD, M3 Screw, Grade 303 Stainless Steel Female Unthreaded Circuit Board Spacer - Round Body, Uncoated, 24mm OAL
Item #: 77128478
Brand: Electro Hardware
Model #: MS1047M07F16D
Exact Tooling IR#: 04
Features and Benefits
Female unthreaded circuit board spacers do not have threads and resemble a plain, cylindrical tube. They are the most common type of spacer.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Female Unthreaded |
| Material | Stainless Steel |
| System of Measurement | Metric |
| Body Shape | Round |
| Screw Size | M3 |
| Outside Diameter (mm) | 6.0 |
| Overall Length (mm) | 24.0 |
| Inside Diameter (mm) | 3.2 to 3.6 |
| Finish/Coating | Uncoated |
| Material Grade | Grade 303 |
| Inside Diameter Tolerance (mm) | 0.000 to 0.270 |
| Length Tolerance (mm) | -0.130 to 0.130 |
| Fastener Standard | QQ-S-763 |
