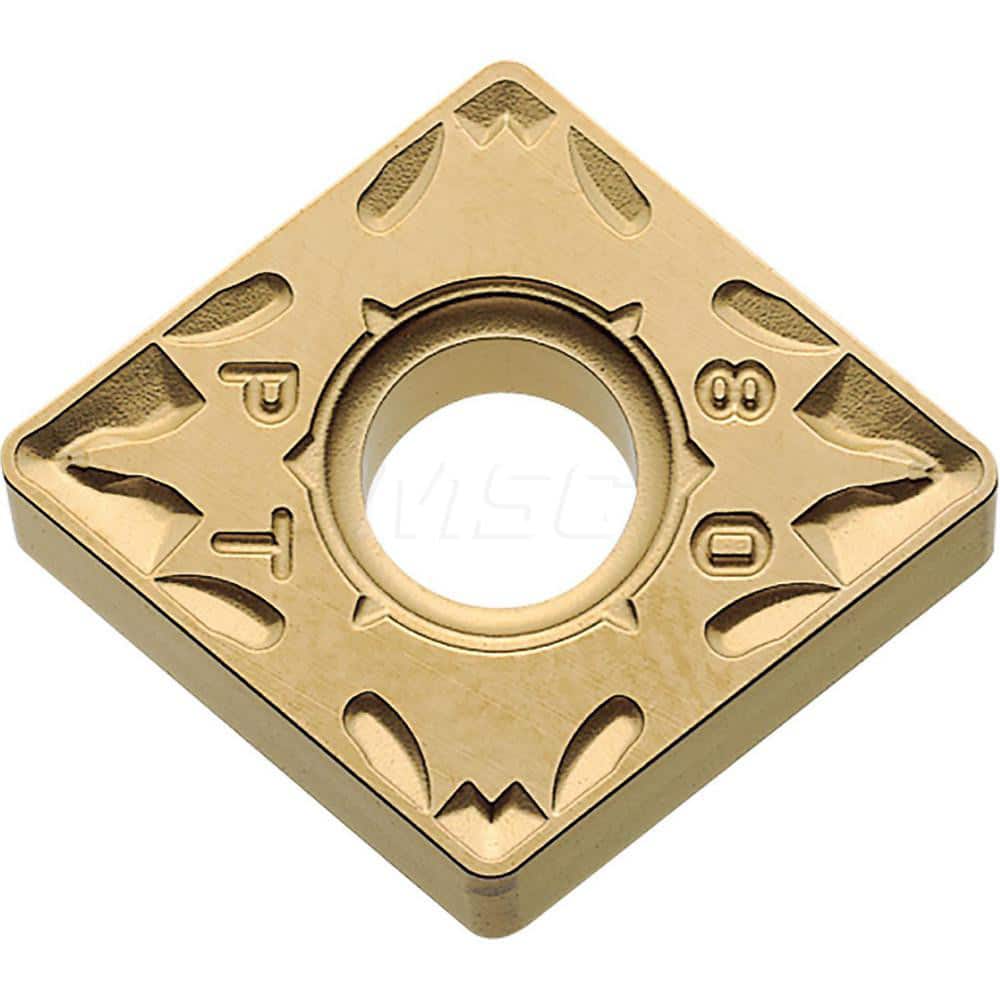

Kyocera CNMG 544PT CA5525 Grade CVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel
Item #: 76877471
Brand: Kyocera
Model #: TJR01053
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 544 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA5525 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 5/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 5/8 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Primary Workpiece Material | P |
| Iso Code | CNMG160616PT |
| Manufacturers Catalog Number | CNMG544PTCA5525 |
| Chip Breaker | PT |
| Style | CNMG |
| Full Radius | No |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
