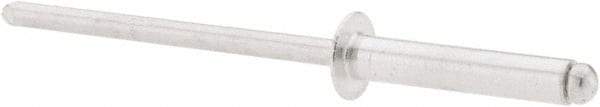

RivetKing - Size 48 Dome Head Aluminum Open End Blind Rivet - Aluminum Mandrel, 0.376" to 1/2" Grip, 1/4" Head Diam, 0.129" to 0.133" Hole Diam, 0.65" Length Under Head, 1/8" Body Diam
Item #: 76806181
Brand: RivetKing
Model #: ABA48/P500
Exact Tooling IR#: 04
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Open End |
| Head Type | Dome |
| Size Code | 48 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.3760 |
| Maximum Grip (Decimal Inch) | 0.5000 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Rivet Material Grade | 5052 |
| Drill Size (Wire) | #30 |
| Length Under Head (Decimal Inch) | 0.6500 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Diameter (Inch) | 1/8 |
| Shear Strength (Lb.) | 120.00 |
| Tensile Strength (Lb.) | 150.00 |
| Rivet Finish/Coating | Bright |
| Fastener Standard | IFI 114 Grade 11 |
| Head Height (Decimal Inch) | 0.0400 |
