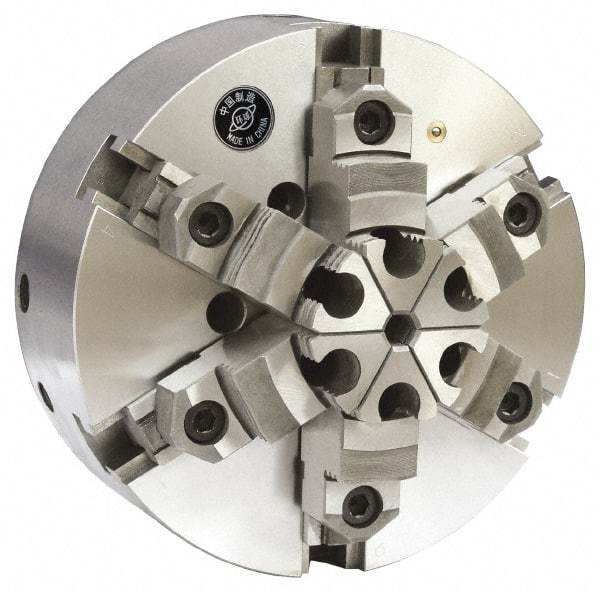

Gibraltar - 6 Jaws, 10" Diam, Self Centering Manual Lathe Chuck - Adjustable, Reversible, 2.835" Through Hole Diam, Forged Steel
Item #: 76784826
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 10 |
| Number of Jaws | 6 |
| Through-Hole Diameter (Decimal Inch) | 2.8350 |
| Body Material | Forged Steel |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (mm) | 254.00 |
| Chuck Diameter (Inch) | 10 |
| Adjustable | Yes |
| Jaw Type | Top Jaws |
| TIR Repeatability (mm) | 0.0125 |
| Body Length (Decimal Inch) | 3.4920 |
