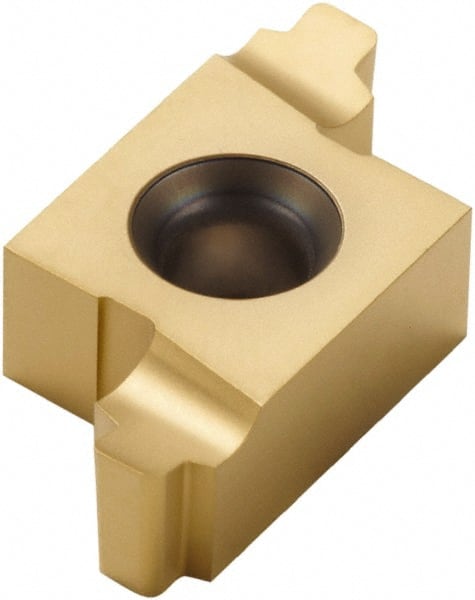

Seco - 14ER1.8DY CP500 Carbide Grooving Insert
Item #: 76760594
Brand: Seco
Model #: 00026821
Product Specifications
| Insert Style | 14ER |
| Insert Size | 1418 |
| Material | Carbide |
| Cutting Width (mm) | 2.40 |
| Cutting Width (Decimal Inch) | 0.0945 |
| Maximum Depth of Cut (mm) | 1.55 |
| Maximum Depth of Cut (Decimal Inch) | 0.0610 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Insert Seat Size | 14 |
| Chipbreaker | DY |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating Process | PVD |
| Overall Length (mm) | 14.00 |
| Overall Length (Decimal Inch) | 0.5512 |
| Series | Snap Tap |
| Overall Width (mm) | 9.53 |
| Overall Width (Decimal Inch) | 0.3752 |
| Series Number | Snap Tap |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Corner Radius (Inch) | 0.0197 |
