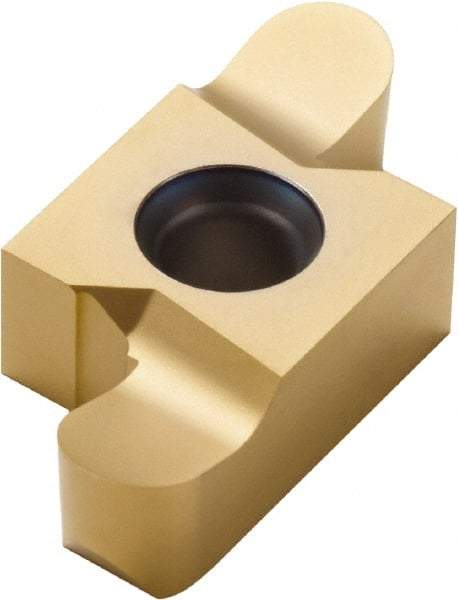

Seco - 142014ER R Grade CP500, 2mm Cutting Width Carbide Grooving Insert - Right Hand, 2mm Corner Radius, TiAlN/TiN Finish
Item #: 76760354
Brand: Seco
Model #: 26797
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 14ER |
| Insert Size | 1420 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Insert Seat Size | 14 |
| Chipbreaker | R |
| Multi-Use Tool | No |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating Process | PVD |
| Overall Length (mm) | 14.00 |
| Overall Length (Decimal Inch) | 0.5512 |
| Series | Snap Tap |
| Overall Width (mm) | 9.53 |
| Overall Width (Decimal Inch) | 0.3752 |
