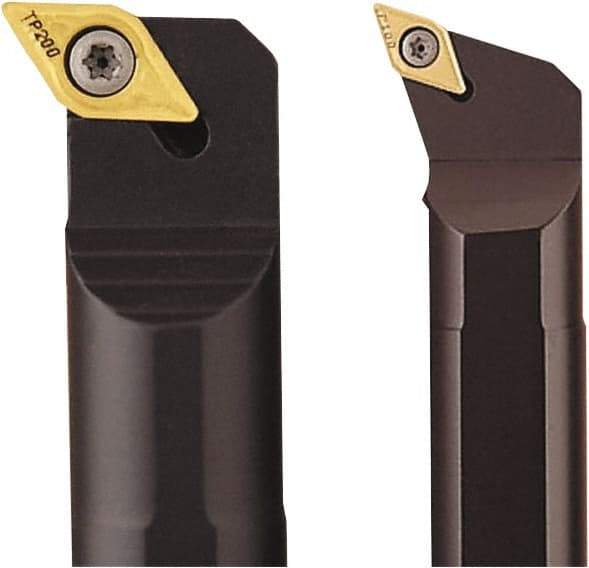

Seco - 0.78" Min Bore Diam, 8" OAL, 12.7mm Shank Diam, S-SDQC Indexable Boring Bar - DCMT 21.5.. Insert, Screw Holding Method
Item #: 76749977
Brand: Seco
Model #: 73944
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SDQC |
| Series | Screw-On |
| Minimum Bore Diameter (Decimal Inch) | 0.7800 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | DCMT 21.5.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 107.5 |
| Center to Cutting Edge (Decimal Inch) | 0.4370 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | DCMT 21.50.5-F1; DCMT 21.50.5-F2; DCMT 21.50.5-MF2; DCMT 21.51-F1; DCMT 21.51-F2; DCMT 21.51-FF1; DCMT 21.51-MF2; DCMT 21.52-F1; DCMT 21.52-F2; DCMT 21.52-MF2 |
| Toolholder Material | Steel |
