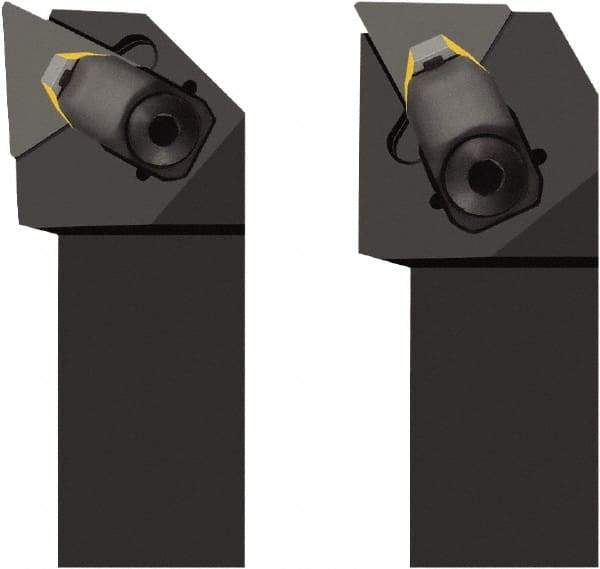

Seco - CTFN, Left Hand Cut, 90° Lead Angle, 1" Shank Height x 1" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, TNMN 221 Insert Compatibility, Series Multi-Directional Turning (MDT)
Item #: 76749555
Brand: Seco
Model #: 73863
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | CTFN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Multi-Directional Turning (MDT) |
| Lead Angle | 90 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | TNMN 221 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.1800 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
