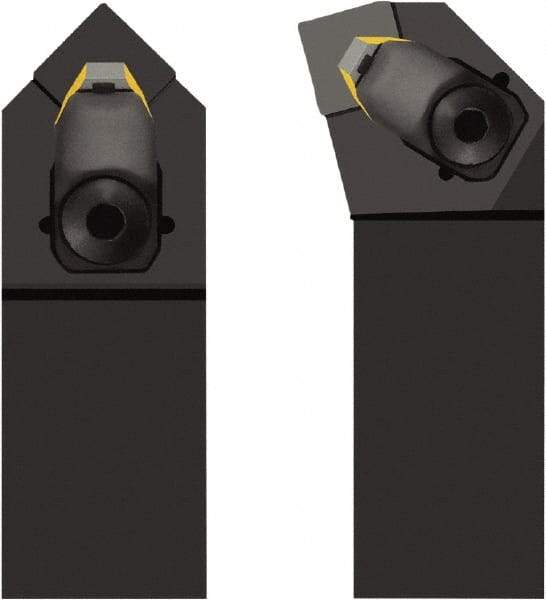

Seco - CSDN, Neutral Cut, 45° Lead Angle, 1" Shank Height x 1" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, SNMN 422 Insert Compatibility, Series Multi-Directional Turning (MDT)
Item #: 76749142
Brand: Seco
Model #: 73786
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CSDN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Multi-Directional Turning (MDT) |
| Lead Angle | 45 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | SNMN 422 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 1.7000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
