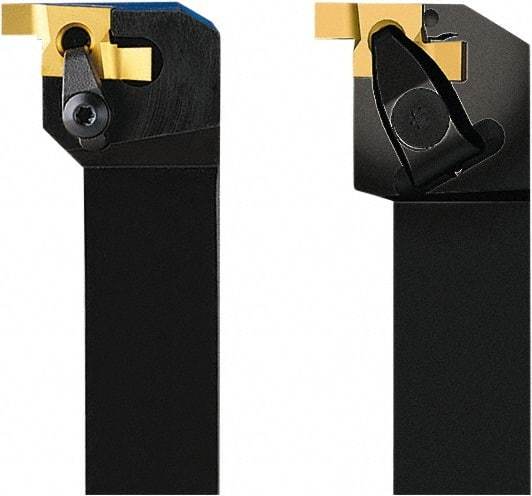

Seco - CEA, External, Right Hand, 0.15" Max Depth of Cut, 0.15 to 0.157" Groove Width, Indexable Grooving Tool Holder - 14EAR Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 76749043
Brand: Seco
Model #: 72623
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Minimum Groove Width (Decimal Inch) | 0.1500 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | CEA |
| Insert Compatibility | 14EAR |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Snap Tap |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.4400 |
| Head Length (Decimal Inch) | 0.9000 |
| Complete Insert Compatibility | 14EAR .15FA; 14EAR 4.0FA |
