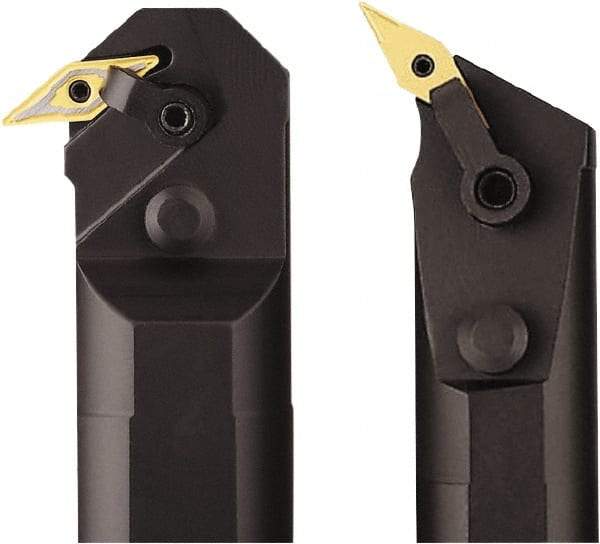

Seco - 1-3/4" Min Bore Diam, 14" OAL, 1-1/4" Shank Diam, A-MVPN Indexable Boring Bar - VNMG 332 Insert, Pin & Clamp Holding Method
Item #: 76742410
Brand: Seco
Model #: 41126
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MVPN |
| Series | Multi-Option |
| Minimum Bore Diameter (Decimal Inch) | 1.7500 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | VNMG 332 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (Decimal Inch) | 0.8750 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -5 |
| Complete Insert Compatibility | VNMG 332-FF2; VNMG 332-M3; VNMG 332-MF2; VNMG 332-MF3; VNMG 332-MF4; VNMG 332-MR4 |
| Toolholder Material | Steel |
