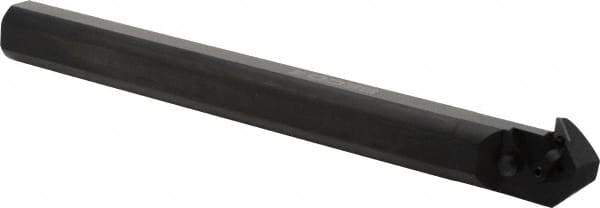

Seco - 2-1/4" Min Bore Diam, 14.795" OAL, 1-1/2" Shank Diam, MVLN Indexable Boring Bar - VNMG 332 Insert, Pin & Clamp Holding Method
Item #: 76742352
Brand: Seco
Model #: 41118
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | MVLN |
| Minimum Bore Diameter (Decimal Inch) | 2.2500 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 14.7950 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | VNMG 332 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 1.1250 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
