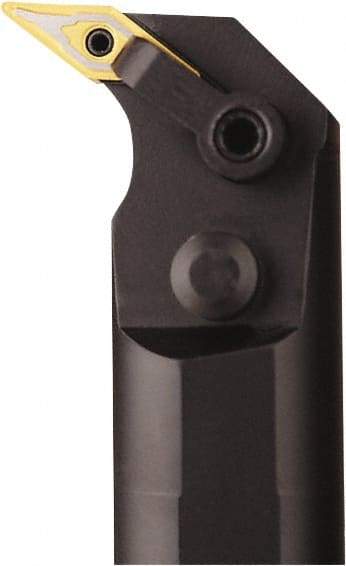

Seco - 2-1/4" Min Bore Diam, 14" OAL, 1-1/4" Shank Diam, A-MVUN Indexable Boring Bar - VNMU 2.531 Insert, Pin & Clamp Holding Method
Item #: 76742279
Brand: Seco
Model #: 41106
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MVUN |
| Series | Multi-Option |
| Minimum Bore Diameter (Decimal Inch) | 2.2500 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | VNMU 2.531 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 93 |
| Center to Cutting Edge (Decimal Inch) | 1.1250 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -5 |
| Complete Insert Compatibility | VNMU 2.531-M3 |
| Toolholder Material | Steel |
