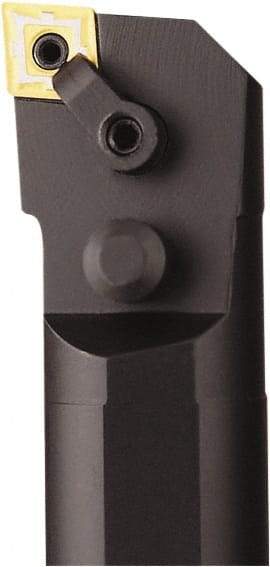

Seco - 1.78" Min Bore Diam, 14" OAL, 1-1/2" Shank Diam, A-MCLN Indexable Boring Bar - CNMG 432 Insert, Pin & Clamp Holding Method
Item #: 76741917
Brand: Seco
Model #: 41053
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MCLN |
| Series | Multi-Option |
| Minimum Bore Diameter (Decimal Inch) | 1.7800 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | CNMG 432 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -5 |
| Complete Insert Compatibility | CNMG 432-FF1; CNMG 432-M2; CNMG 432-M3; CNMG 432-M4; CNMG 432-M5; CNMG 432-MF3; CNMG 432-MF4; CNMG 432-MF5; CNMG 432-MR3; CNMG 432-MR4; CNMG 432-MR6; CNMG 432-MR7; CNMG 432W-FF2; CNMG 432W-M3; CNMG 432W-MF2; CNMG 432W-MF5; CNMG 433W-M3 |
| Toolholder Material | Steel |
