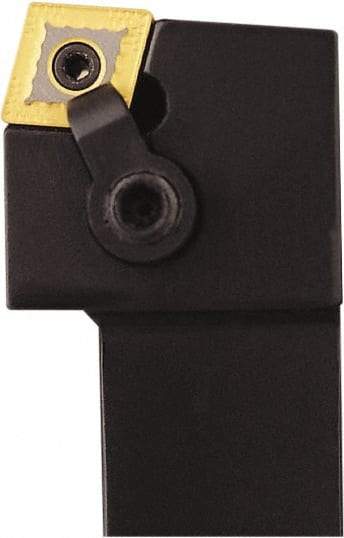

Seco - MCRN, Right Hand Cut, 75° Lead Angle, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, CNMG 643 Insert Compatibility, Series Multi-Directional Turning (MDT)
Item #: 76737923
Brand: Seco
Model #: 13038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | MCRN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Multi-Directional Turning (MDT) |
| Lead Angle | 75 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CNMG 643 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 1.4900 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
