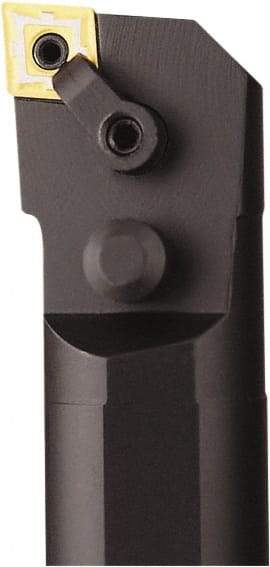

Seco - 2.562" Min Bore Diam, 16" OAL, 2" Shank Diam, A-MCLN Indexable Boring Bar - CNMG 543 Insert, Pin & Clamp Holding Method
Item #: 76736495
Brand: Seco
Model #: 12118
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MCLN |
| Series | Multi-Option |
| Minimum Bore Diameter (Decimal Inch) | 2.5620 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 16.0000 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | CNMG 543 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (Decimal Inch) | 1.2810 |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Rake Angle | -5 |
| Complete Insert Compatibility | CNMG 543-M3; CNMG 543-M5; CNMG 543-MF3; CNMG 543-MF4; CNMG 543-MR4; CNMG 543-MR6; CNMG 543-MR7 |
| Toolholder Material | Steel |
