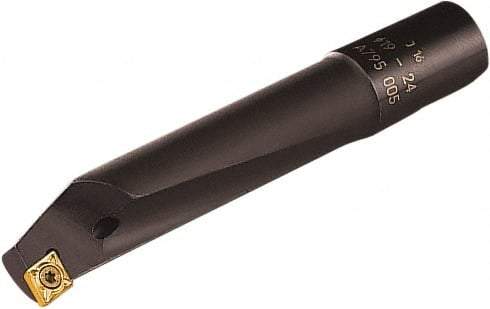

Seco - 27mm Min Bore Diam, 16mm Shank Diam, Indexable Boring Bar - 70mm Max Bore Depth, CC.. 0602.. Insert
Item #: 76709732
Brand: Seco
Model #: 56646
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Graflex |
| Minimum Bore Diameter (mm) | 27.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.0630 |
| Maximum Bore Depth (mm) | 70.00 |
| Maximum Bore Depth (Decimal Inch) | 2.7559 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | CC.. 0602.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Lead Angle | 90 |
| Maximum Bore Diameter (mm) | 32.00 |
| Maximum Bore Diameter (Decimal Inch) | 1.2598 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
