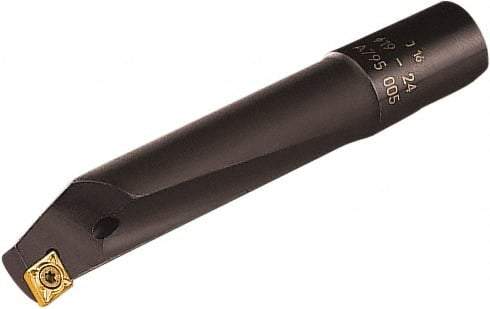

Seco - 8mm Min Bore Diam, 16mm Shank Diam, Indexable Boring Bar - 45mm Max Bore Depth, WB.. 0301.. Insert
Item #: 76709682
Brand: Seco
Model #: 56641
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Graflex |
| Minimum Bore Diameter (mm) | 8.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.3150 |
| Maximum Bore Depth (mm) | 45.00 |
| Maximum Bore Depth (Decimal Inch) | 1.7717 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | WB.. 0301.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Lead Angle | 90 |
| Maximum Bore Diameter (mm) | 11.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.4331 |
| Insert Thickness (Decimal Inch) | 0.0626 |
| Toolholder Material | Heavy Metal |
