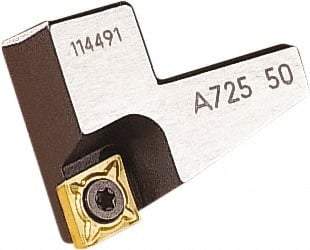

Seco - TC.. Insert Style, 0.641" OAL, Replaceable Boring Bar Head - 90° Lead Angle, 0.744" Back of Bar to Cutting Edge, 3.35" Min Bore Diam, 4.53" Max Bore Diam, Series EPB
Item #: 76709237
Brand: Seco
Model #: 56575
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | TC.. |
| Overall Length (Decimal Inch) | 0.6410 |
| Series | EPB |
| Multi-Use Tool | No |
| Lead Angle | 90 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7440 |
| Maximum Bore Diameter (Decimal Inch) | 4.5300 |
| Complete Insert Compatibility | TCGT 21.50.5; TCGT 21.51; TCMT 21.50.5 F1; TCMT 21.51 F1; TCMW 21.50.5 F-L1; TCMW 21.51 E-L0; TCMW 21.51 E-L0-C; TCMW 21.51 F-L1 |
