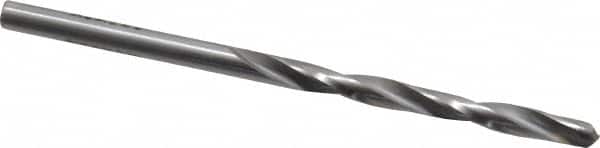

Made in USA - 5/32" 135° Carbide-Tipped Jobber Drill - Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-1/8" OAL, Split Point
Item #: 76558089
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Carbide tips cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 5/32 |
| Drill Bit Size (Decimal Inch) | 0.1562 |
| Drill Point Angle | 135 |
| Drill Bit Material | Carbide-Tipped |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2 |
| Overall Length (Inch) | 3-1/8 |
| Point Type | Split Point |
| Shank Diameter (Inch) | 5/32 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0007 to 0.0000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Series/List | 2601 |
