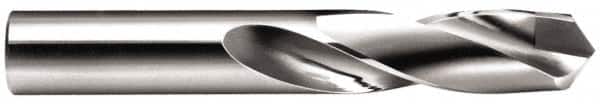

Screw Machine Length Drill Bit: 0.3937″ Dia, 118 °, Carbide Tipped Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2640
Item #: 76556943
Brand: Made in USA
Model #: 2640100
Product Specifications
| Drill Bit Size (mm) | 10.00 |
| Tool Material | Carbide Tipped |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 84.00 |
| Overall Length (Inch) | 3-5/16 |
| Shank Diameter (mm) | 10.00 |
| Series | 2640 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Shank Length (Decimal Inch) | 1.3780 |
| Shank Length (mm) | 35.00 |
| Tool Performance | CNC Machine |
| Drill Bit Diameter Tolerance | -0.0010 to 0.0000 in |
| Flute Length (Inch) | 1-59/64 |
| Flute Length (mm) | 49.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Drill Bit Size Range (mm) | 9.50 to 11.00 |
