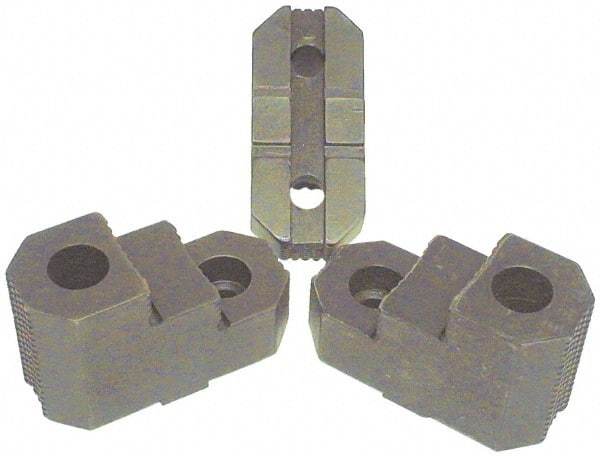

H & R Manufacturing - 15 to 24" Chuck Diam Compatibility, Mild Carburized Steel Tongue & Groove Hard Lathe Top Jaws - 2 Steps, 1/2" Groove Width, 1-3/4" Wide x 5.26" Long x 3-15/32" High
Item #: 76554831
Brand: H & R Manufacturing
Model #: HR-18 STGRJ
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 24 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 24.00 |
| Number of Steps | 2 |
| Material | Mild Carburized Steel |
| Overall Width/Diameter (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 5.2600 |
| Minimum Compatible Chuck Diameter (Inch) | 15 |
| Groove Width (Decimal Inch) | 0.5000 |
| Number of Jaws | 3 |
| Overall Height (Decimal Inch) | 3.4690 |
| Fastener Size (Inch) | 3/4 |
| Distance Between Mount Hole Centers (Decimal Inch) | 3.0000 |
