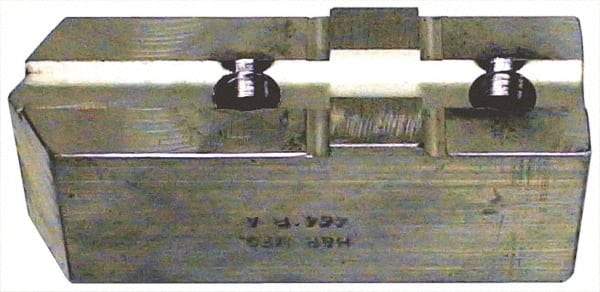

H & R Manufacturing - Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - Aluminum, 2.12" Btw Mount Hole Ctrs, 4-13/16" Long x 1-1/2" Wide x 1-7/8" High, 1/2" Groove
Item #: 76554278
Brand: H & R Manufacturing
Model #: HR-464-P-A
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Aluminum |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 10 |
| Minimum Compatible Chuck Diameter (Inch) | 10 |
| Overall Height (Inch) | 1-7/8 |
| Groove Width (Decimal Inch) | 0.5000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 2.1200 |
| Tongue Width (Decimal Inch) | 0.7500 |
| Jaw End Shape | Pointed |
| Fastener Size (Inch) | 1/2 |
| Overall Width/Diameter (Inch) | 1-1/2 |
| Overall Length (Inch) | 4-13/16 |
| Material Grade | 6061 |
