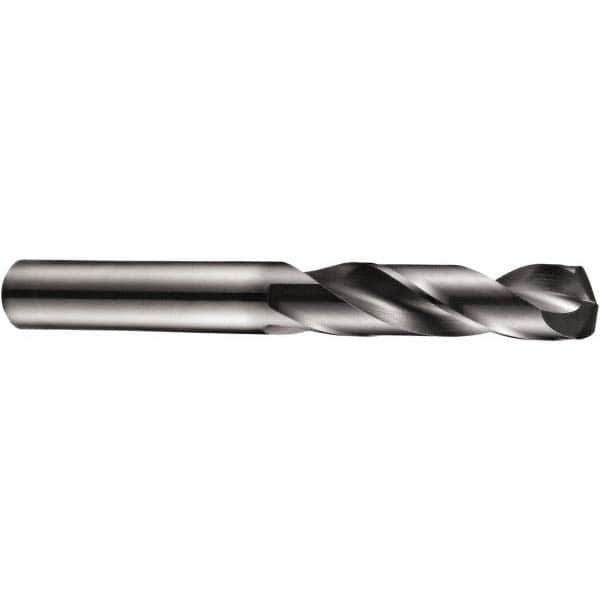

Screw Machine Length Drill Bit: 0.375″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series R458
Item #: 76546258
Brand: DORMER
Model #: 5981109
Product Specifications
| Drill Bit Size (Inch) | 3/8 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Four Facet; Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3750 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.00 |
| Series | R458 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | 0 to -9 ?m |
| Standards | DIN 6537 K |
| Flute Length (mm) | 47.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Specification Designation | DIN |
