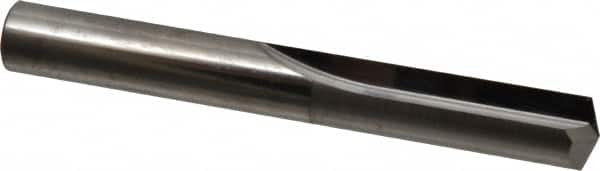

Die Drill Bit: 7/16″ Dia, 140 °, Solid Carbide Uncoated, 2-1/16″ Flute, 3-7/16″ OAL, Series 106
Item #: 76529668
Brand: SGS
Model #: 56128
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Inch) | 7/16 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Inch) | 2-1/16 |
| Flute Length (Decimal Inch) | 2.0625 |
| Drill Point Angle | 140 |
| Overall Length (Inch) | 3-7/16 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.4375 |
| Material Grade | Micrograin |
| Overall Length (Decimal Inch) | 3.4375 |
| Series | 106 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Primary Workpiece Material | Cast Iron; Steel; Hardened Steel |
| Secondary Workpiece Material | Hardened Materials |
| Standards | DIN 6539 |
| Maximum Drilling Depth (Decimal Inch) | 1.6560 |
| Shank Diameter (Decimal Inch) | 7/16 |
| Shank Length (Decimal Inch) | 1.5680 |
| Flute By Diameter Ratio | 3xD |
