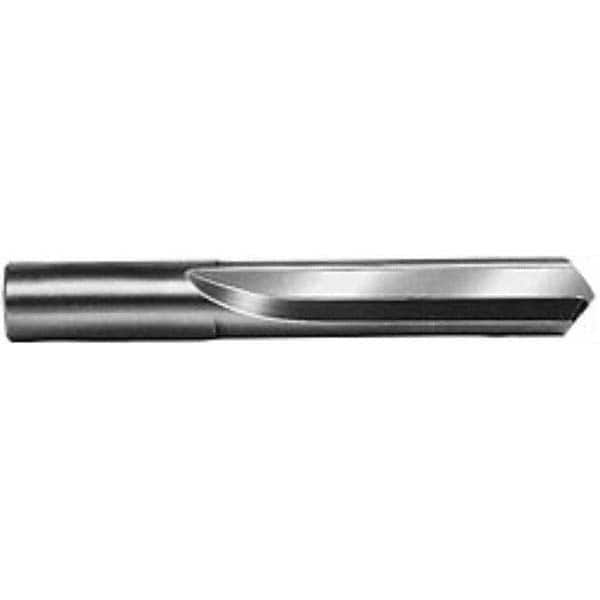

Die Drill Bit: 25/64″ Dia, 140 °, Solid Carbide Bright Finish, 1-7/8″ Flute Length, 3-1/4″ OAL
Item #: 76529635
Brand: SGS
Model #: 56125
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Inch) | 25/64 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Decimal Inch) | 1.8750 |
| Drill Point Angle | 140 |
| Overall Length (Inch) | 3-1/4 |
| Shank Diameter (Decimal Inch) | 0.3906 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.3906 |
| Material Grade | Micrograin |
| Overall Length (Decimal Inch) | 3.2500 |
| Series | 106 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Primary Workpiece Material | Cast Iron; Steel; Hardened Steel |
| Secondary Workpiece Material | Hardened Materials |
| Standards | DIN 6539 |
| Maximum Drilling Depth (Inch) | 1 |
| Maximum Drilling Depth (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 1.5600 |
| Flute By Diameter Ratio | 3xD |
