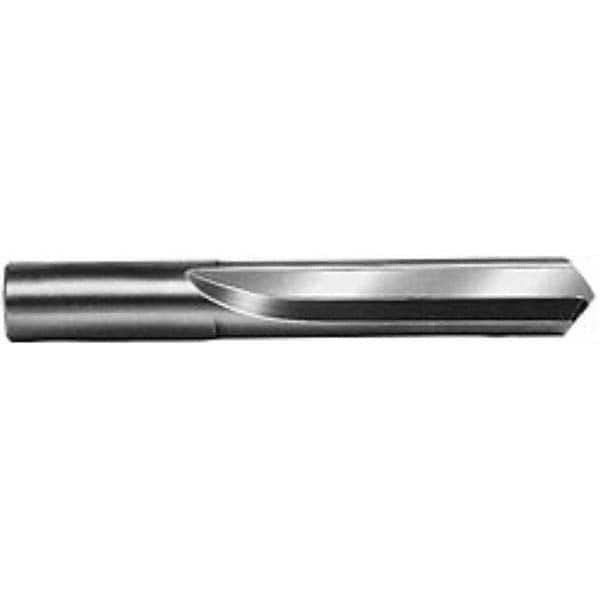

Die Drill Bit: 19/64″ Dia, 140 °, Solid Carbide Uncoated, 1-9/16″ Flute, 2-3/4″ OAL, Series 106
Item #: 76529577
Brand: SGS
Model #: 56119
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Inch) | 19/64 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Inch) | 1-9/16 |
| Flute Length (Decimal Inch) | 1.5625 |
| Drill Point Angle | 140 |
| Overall Length (Inch) | 2-3/4 |
| Shank Diameter (Decimal Inch) | 0.2969 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.2969 |
| Material Grade | Micrograin |
| Overall Length (Decimal Inch) | 2.7500 |
| Series | 106 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Primary Workpiece Material | Cast Iron; Steel; Hardened Steel |
| Secondary Workpiece Material | Hardened Materials |
| Standards | DIN 6539 |
| Maximum Drilling Depth (Inch) | 1-1/4 |
| Maximum Drilling Depth (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 1.2780 |
| Flute By Diameter Ratio | 3xD |
