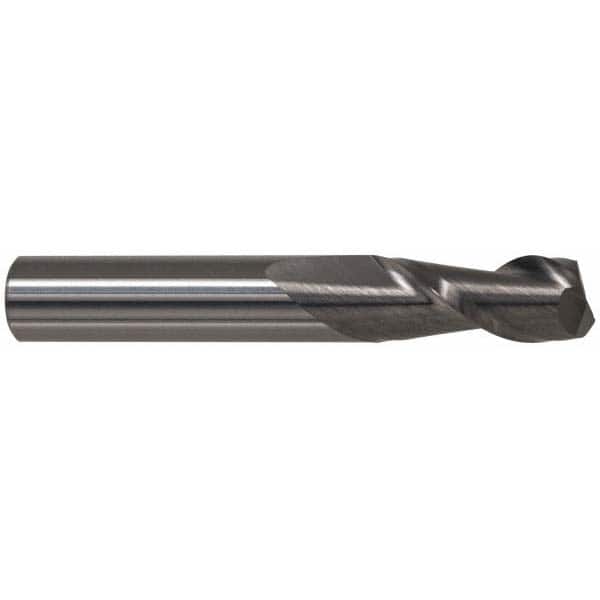

Accupro - 11mm, 14mm LOC, 12mm Shank Diam, 76mm OAL, 2 Flute, Solid Carbide Square End Mill
Item #: 76490853
Brand: Accupro
Model #: 12181681
Product Specifications
| Mill Diameter (mm) | 11.00 |
| Mill Diameter (Decimal Inch) | 0.4331 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 14.00 |
| Length of Cut (Decimal Inch) | 0.5512 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 12.00 |
| Single or Double End | Single |
| Overall Length (mm) | 76.00 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 40.00 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Spiral |
| Length Type | Stub |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Extended Reach | No |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
