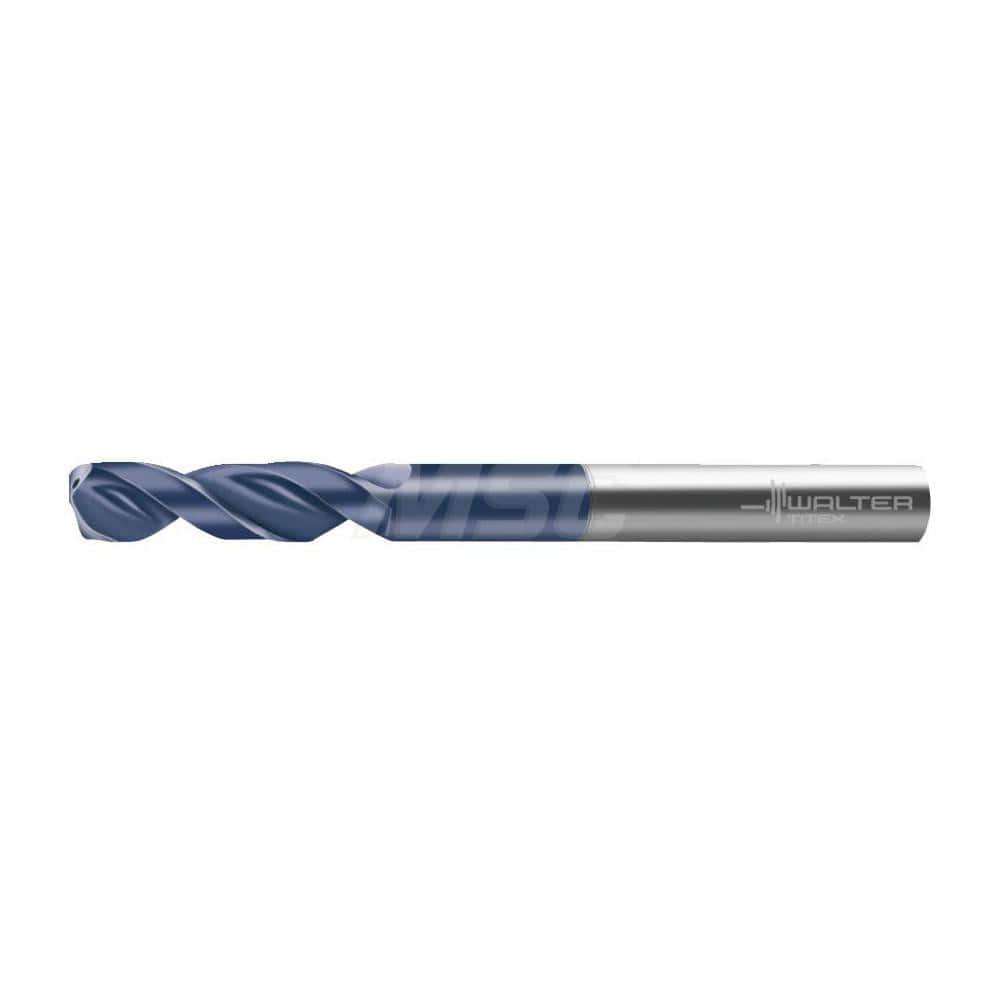

Screw Machine Length Drill Bit: 0.2812″ Dia, 150 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A6181TFT
Item #: 76373828
Brand: Walter-Titex
Model #: 5293773
Product Specifications
| Drill Bit Size (Inch) | 9/32 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 150 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 0 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2812 |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Shank Diameter (mm) | 8.00 |
| Series | A6181TFT |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.1420 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 0.96 |
| Drill Point Length (Decimal Inch) | 0.0364 |
| Flute By Diameter Ratio | 2xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | p7 |
| Standards | ISO; DIN |
| Flute Length (mm) | 41.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Specification Number | DIN 6535HA |
| Specification Designation | DIN |
| Material Grade | K30F |
 | |
| MSC Part # | 76373828 |
| Mfr Part # | 5293773 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
