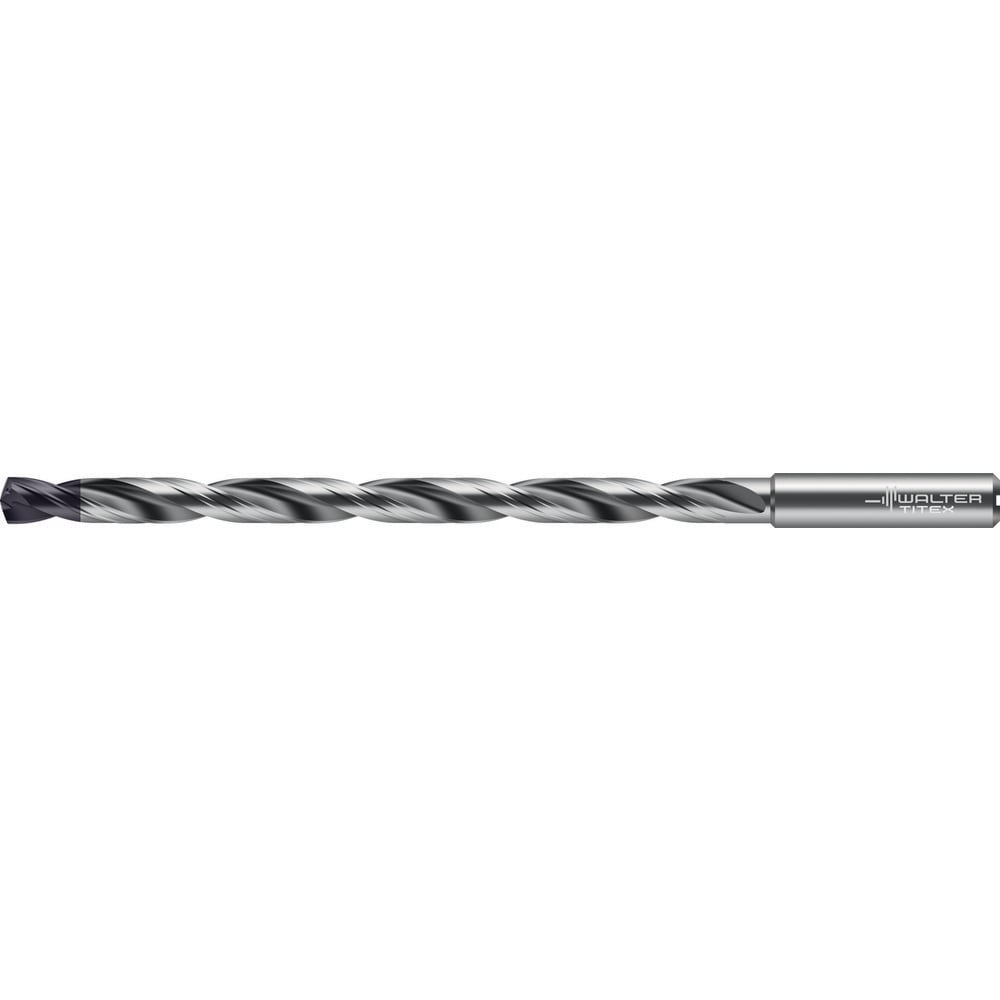

Extra Length Drill Bit: 0.6102", 140 °, Carbide
Item #: 82371980
Brand: Walter-Titex
Model #: 8325374
Product Specifications
| Drill Bit Size (mm) | 15.50 |
| Overall Length (mm) | 260.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiSiAlCrN/AlTiN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 208.00 |
| Point Type | Standard |
| Series | DC180 |
| Cutting Direction | Right Hand |
| Spiral Type | Regular Spiral |
| Drill Bit Diameter Tolerance | m7 |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.6102 |
| Drill Point Length (mm) | 2.82 |
| Drill Point Length (Decimal Inch) | 0.1111 |
| Overall Length (Decimal Inch) | 10.2362 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.0000 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.000 |
| Flute Length (Decimal Inch) | 8.1890 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 7.5591 |
| Maximum Drilling Depth (mm) | 192.00 |
| UNSPSC Code | 23241605 |
| Country of Origin | France |
