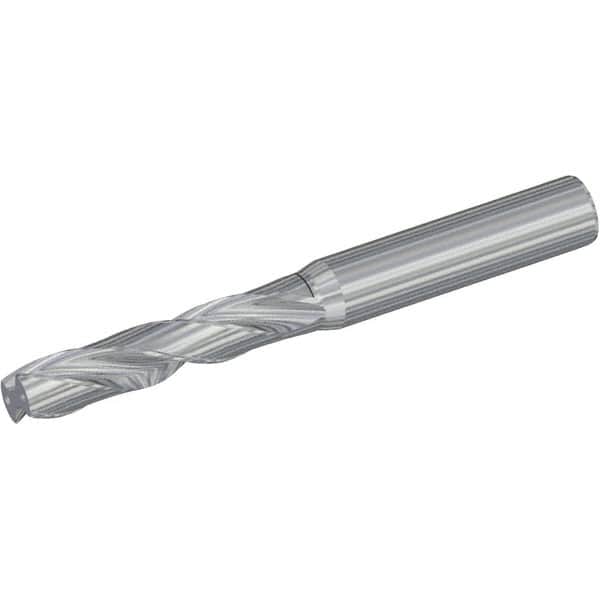

Screw Machine Length Drill Bit: 0.25″ Dia, 180 °, Solid Carbide Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series B707A-FBL
Item #: 76294453
Brand: Kennametal
Model #: 3885830
Product Specifications
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Size (Letter) | E |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Drill Point Angle | 180 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Flat Bottom |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Series | B707A-FBL |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.9449 |
| Maximum Drilling Depth (mm) | 24.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 0.28 |
| Drill Point Length (Decimal Inch) | 0.0110 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0002 to +0.0008 in; +0.006 to +0.021 mm |
| Flute Length (Decimal Inch) | 1.3386 |
| Flute Length (mm) | 34.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Specification Number | DIN 6535 |
| Specification Designation | DIN |
