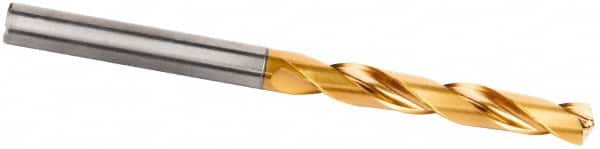

Kennametal - 13.08mm 135° Solid Carbide Jobber Drill - Multilayer TiCN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OAL, Standard Point
Item #: 76275890
Brand: Kennametal
Model #: 4099322
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Titanium carbonitride (TiCN) is harder and more wear resistant than Titanium nitride (TiN). It is used on a variety of materials including stainless steel, cast iron and aluminum alloy.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 13.08 |
| Drill Bit Size (Decimal Inch) | 0.5149 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer TiCN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 76.00 |
| Flute Length (Decimal Inch) | 2.9921 |
| Overall Length (mm) | 124.00 |
| Overall Length (Decimal Inch) | 4.8819 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Standard |
| Shank Diameter (mm) | 14.29 |
| Shank Diameter (Inch) | 9/16 |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Maximum Drilling Depth (Decimal Inch) | 2.3622 |
| Maximum Drilling Depth (mm) | 60.00 |
| Spiral Type | Regular Spiral |
| Shank Length (Decimal Inch) | 1.7913 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.007 to 0.025 |
| Number of Flutes | 2 |
| Material Grade | KCM15 |
| Series/List | K211A-HP |
