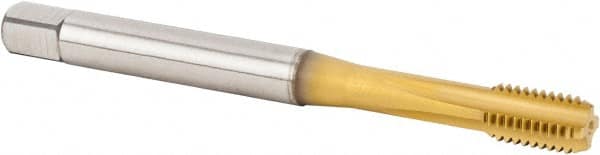

Kennametal - M5x0.80 Metric Coarse 6HX 3 Flute TiCN/TiN Finish Powdered Metal Straight Flute Machine Tap - Bottoming, Right Hand Thread, 70mm OAL, 10mm Thread Length, Oversize, Through Coolant
Item #: 76268135
Brand: Kennametal
Model #: 4156550
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Powdered metal cobalt high speed steel provides the highest performance of the powdered metals. It is used at extremely high temperatures and cutting speeds on highly abrasive materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M5x0.80 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | Powdered Metal |
| Finish/Coating | TiCN/TiN |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 2.75590 |
| Overall Length (mm) | 70.00 |
| Oversize | No |
| Series/List | T643 |
| Thread Length (Decimal Inch) | 0.3937 |
| Thread Length (mm) | 10.00 |
| Neck Length (Inch) | 19/32 |
| Tapping Depth (mm) | 25 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Square Size (Decimal Inch) | 0.1930 |
| Square Size (mm) | 4.90 |
| Material Application | Cast Iron; Non-Ferrous Materials |
