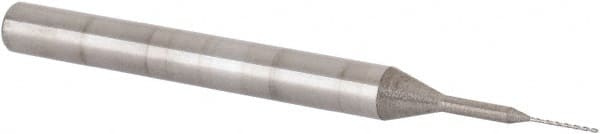

#87, 130° Drill Point, 1/8″ Shank Diam, Fast Spiral Circuit Board Drill Bit 3.81mm Flute Length, 1-1/2″ OAL, Series 302
Item #: 76216613
Brand: M.A. Ford?
Model #: 30201000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.01 in; 0.25 mm |
| Drill Bit Size (Wire) | #87 |
| Drill Point Angle | 130 ? |
| Drill Bit Material | Carbide; Solid Carbide |
| Coated | Uncoated |
| Coating | Bright (Polished) |
| Shank Diameter (Fractional Inch) | 1/8 |
| Flute Length | 3.81 mm; 0.15 in |
| Series | 302 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0003 in |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; N; O |
| Spiral Type | Fast Spiral |
| Web Configuration | Tapered |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Helix Angle | 35 ? |
| Drill Bit Diameter Tolerance (mm) | +0.0000 to -0.0003 in |
| Shank Diameter (Decimal Inch) | 0.125 in; 1/8 in; 3.18 mm |
