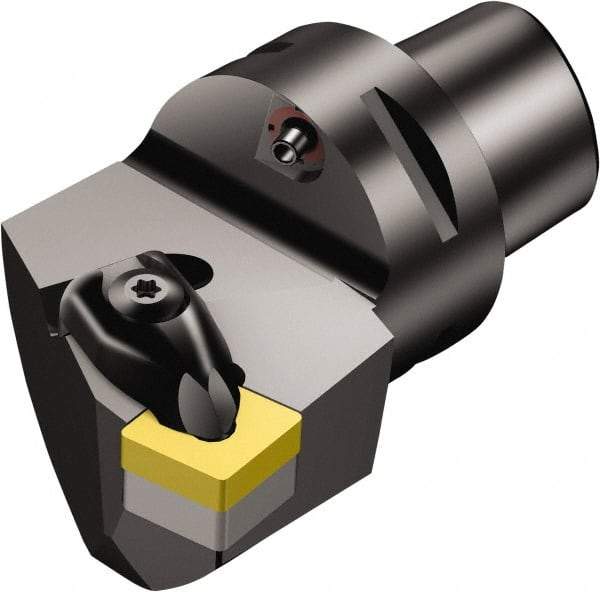

Sandvik Coromant - Right Hand Cut, Size C5, CNMG 16 06 12 & CNMG 543 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 63.8mm Head Length, Through Coolant, Series T-Max P
Item #: 76154244
Brand: Sandvik Coromant
Model #: 5728017
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 63.80 |
| Head Length/Projection (Decimal Inch) | 2.5118 |
| Insert Style | CNMG 16 06 12; CNMG 543 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 60.00 |
| Maximum Hole Depth (Decimal Inch) | 2.3622 |
| Minimum Hole Diameter (mm) | 125.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.9213 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | CNMG 543; CNMG 16 06 12 |
| Head Connection Size | C5 |
