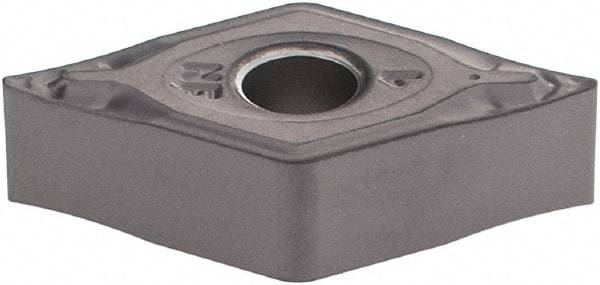

Iscar - DNMG331 NF Grade IC907 Carbide Turning Insert - 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 76134469
Brand: Iscar
Model #: 5594179
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4579 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IC907 |
| Material Grade | C7/C8 |
| Chip Breaker | NF |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S; M; H |
| Included Angle | 55 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
