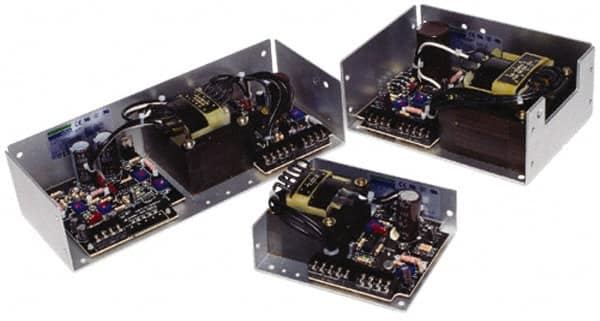

Sola/Hevi-Duty - 61.2 Watt, 5.10 Amp, 100 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC Input, 12 VDC Output, Power Supply - Screw Terminal Connection, 1 Output, 7 Inch Wide x 2-3/4 Inch Deep x 4.87 Inch High, 32 to 122°F
Item #: 76042688
Brand: Sola/Hevi-Duty
Model #: SLS-12-051T
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Type | Panel |
| Output Wattage | 61.20 |
| Maximum Input Voltage | 100 VAC; 120 VAC; 220 VAC; 230 VAC; 240 VAC |
| Minimum Input Voltage | 100 VAC |
| Number of Outputs | 1 |
| Output Voltage | 12 VDC |
| Output Amperage | 5.10 |
| Number of Phases | 1 |
| Connection Type | Screw Terminal |
| Hold-up Time (ms) | 50 |
| Maximum Operating Temperature (F) | 122 |
| Minimum Operating Temperature (F) | 32 |
| Overall Height (mm) | 123.70 |
| Overall Height (Decimal Inch) | 4.8700 |
| Overall Width (mm) | 178 |
| Overall Width (Decimal Inch) | 7 |
| Overall Depth (mm) | 70 |
| Overall Depth (Decimal Inch) | 2-3/4 |
| Protection Features | Over Voltage Protection; Overload Protection |
| Standards Met | CE Certified IEC60950-1; CSA 60950-1; CSA C22.2; CSA ITE Certified; UL Recognized ITE- UL 60950-1 |
