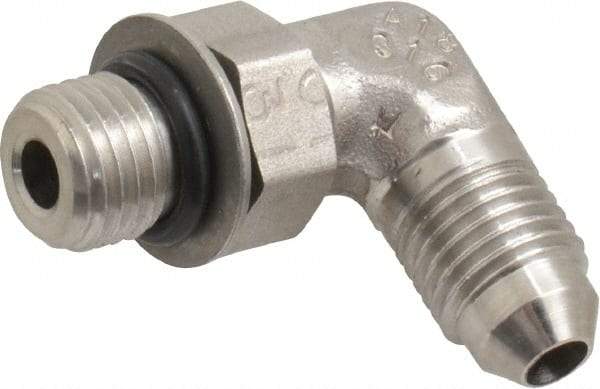

Made in USA - 1/4" Tube OD, 37° Stainless Steel Flared Tube Male Elbow - 7/16-20 UNF, Flared to Male SAE O-Ring, 90° Ends
Item #: 76041730
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Male Elbow |
| Flared Degrees | 37 |
| End Connections | Flared to Male SAE O-Ring, 90 Degrees |
| Thread Size | 7/16-20 |
| Tube Outside Diameter (Inch) | 1/4 |
| Thread Type | UNF |
| Material | Stainless Steel |
| Material Grade | 316 |
| Max Working Pressure Dynamic | 5000 |
| Max Working Pressure Static | 6500 |
| Hex Size (Inch) | 9/16 |
| PSC Code | 4720 |
