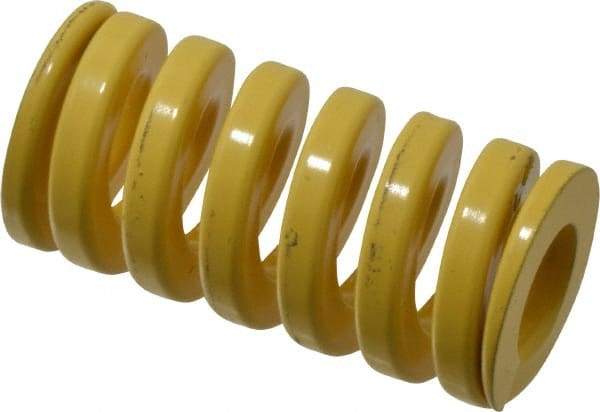

Dayton Lamina - 1-1/4" Hole Diam, 5/8" Rod Diam, 2-1/2" Free Length, Yellow Die Spring - 152 Lb Max Deflection, 0.63" Max Deflection, Extra Heavy Duty, Chromium Vanadium Steel
Item #: 76017045
Brand: Dayton Lamina
Model #: 9-2010-36
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 2-1/2 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (Lb.) | 152.00 |
| Maximum Deflection (Decimal Inch) | 0.6300 |
| Travel To Solid Load (Decimal Inch) | 0.7500 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
