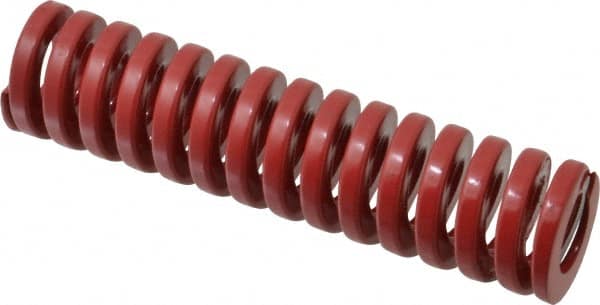

Dayton Lamina - 1-1/4" Hole Diam, 5/8" Rod Diam, 5" Free Length, Red Die Spring - 54.7 Lb Max Deflection, 1.5" Max Deflection, Heavy Duty, Chromium Vanadium Steel
Item #: 76015098
Brand: Dayton Lamina
Model #: 9-2020-26
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 5 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (Lb.) | 54.70 |
| Maximum Deflection (Decimal Inch) | 1.5000 |
| Travel To Solid Load (Decimal Inch) | 1.7100 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
