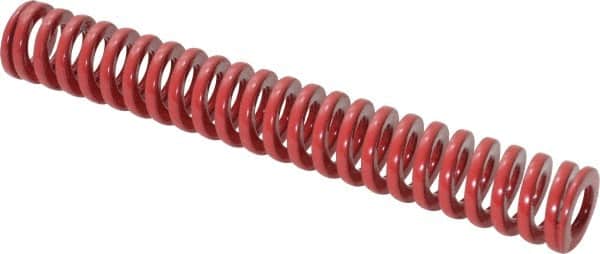

Dayton Lamina - 1/2" Hole Diam, 9/32" Rod Diam, 3-1/2" Free Length, Red Die Spring - 6.2 Lb Max Deflection, 1.05" Max Deflection, Heavy Duty, Chromium Vanadium Steel
Item #: 76014281
Brand: Dayton Lamina
Model #: 9-0814-26
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1/2 |
| Rod Diameter (Inch) | 9/32 |
| Free Length (Inch) | 3-1/2 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (Lb.) | 6.20 |
| Maximum Deflection (Decimal Inch) | 1.0500 |
| Travel To Solid Load (Decimal Inch) | 1.6400 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
