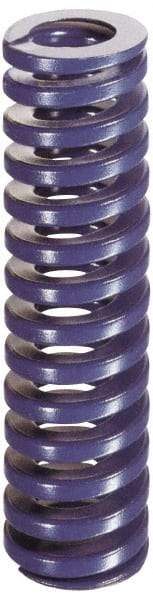

Dayton Lamina - 2" Hole Diam, 1" Rod Diam, 5-1/2" Free Length, Blue Die Spring - 48.8 Lb Max Deflection, 2.05" Max Deflection, Medium Duty, Chromium Vanadium Steel
Item #: 76013473
Brand: Dayton Lamina
Model #: 9-3222-21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 5-1/2 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 48.80 |
| Maximum Deflection (Decimal Inch) | 2.0500 |
| Travel To Solid Load (Decimal Inch) | 2.2700 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
