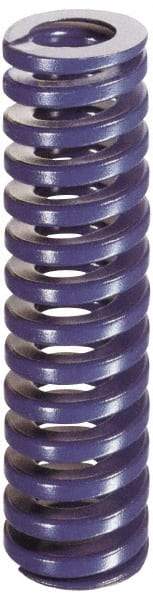

Dayton Lamina - 1-1/4" Hole Diam, 5/8" Rod Diam, 10" Free Length, Blue Die Spring - 11.4 Lb Max Deflection, 3.75" Max Deflection, Medium Duty, Chromium Vanadium Steel
Item #: 76013143
Brand: Dayton Lamina
Model #: 9-2040-21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 10 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 11.40 |
| Maximum Deflection (Decimal Inch) | 3.7500 |
| Travel To Solid Load (Decimal Inch) | 4.2300 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
