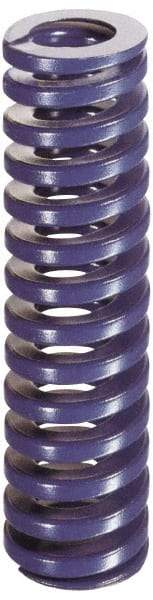

Dayton Lamina - 1" Hole Diam, 1/2" Rod Diam, 4-1/2" Free Length, Blue Die Spring - 16.7 Lb Max Deflection, 1.7" Max Deflection, Medium Duty, Chromium Vanadium Steel
Item #: 76012905
Brand: Dayton Lamina
Model #: 9-1618-21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1 |
| Rod Diameter (Inch) | 1/2 |
| Free Length (Inch) | 4-1/2 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 16.70 |
| Maximum Deflection (Decimal Inch) | 1.7000 |
| Travel To Solid Load (Decimal Inch) | 1.9200 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
