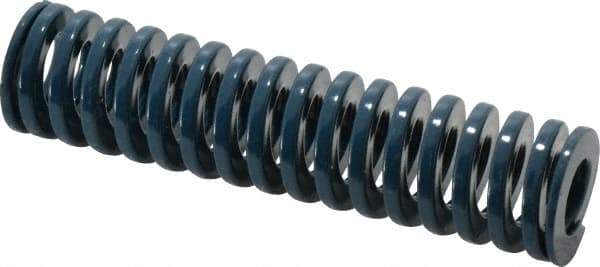

Dayton Lamina - 1" Hole Diam, 1/2" Rod Diam, 4" Free Length, Blue Die Spring - 18.8 Lb Max Deflection, 1.51" Max Deflection, Medium Duty, Chromium Vanadium Steel - Benchmark Tooling

Dayton Lamina - 1" Hole Diam, 1/2" Rod Diam, 4" Free Length, Blue Die Spring - 18.8 Lb Max Deflection, 1.51" Max Deflection, Medium Duty, Chromium Vanadium Steel


Item #: 76012897
Brand: Dayton Lamina
Model #: 9-1616-21
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (Inch) 1
Rod Diameter (Inch) 1/2
Free Length (Inch) 4
Load Type Medium-Duty
Color Blue
Maximum Deflection Load (Lb.) 18.80
Maximum Deflection (Decimal Inch) 1.5100
Travel To Solid Load (Decimal Inch) 1.6800
Wire Shape D-Shaped
Material Chromium Vanadium Steel
$11.39
