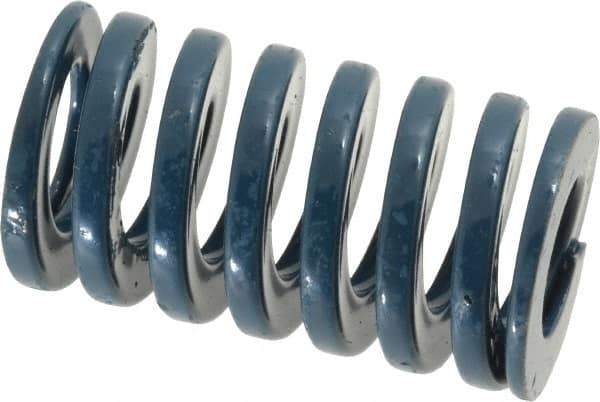

Dayton Lamina - 1" Hole Diam, 1/2" Rod Diam, 1-3/4" Free Length, Blue Die Spring - 47.5 Lb Max Deflection, 0.65" Max Deflection, Medium Duty, Chromium Vanadium Steel - Benchmark Tooling

Dayton Lamina - 1" Hole Diam, 1/2" Rod Diam, 1-3/4" Free Length, Blue Die Spring - 47.5 Lb Max Deflection, 0.65" Max Deflection, Medium Duty, Chromium Vanadium Steel


Item #: 76012848
Brand: Dayton Lamina
Model #: 9-1607-21
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (Inch) 1
Rod Diameter (Inch) 1/2
Free Length (Inch) 1-3/4
Load Type Medium-Duty
Color Blue
Maximum Deflection Load (Lb.) 47.50
Maximum Deflection (Decimal Inch) 0.6500
Travel To Solid Load (Decimal Inch) 0.7200
Wire Shape D-Shaped
Material Chromium Vanadium Steel
$7.96
