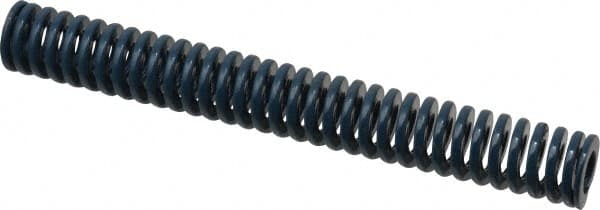

Dayton Lamina - 3/4" Hole Diam, 3/8" Rod Diam, 6" Free Length, Blue Die Spring - 6.9 Lb Max Deflection, 2.24" Max Deflection, Medium Duty, Chromium Vanadium Steel
Item #: 76012731
Brand: Dayton Lamina
Model #: 9-1224-21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/4 |
| Rod Diameter (Inch) | 3/8 |
| Free Length (Inch) | 6 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 6.90 |
| Maximum Deflection (Decimal Inch) | 2.2400 |
| Travel To Solid Load (Decimal Inch) | 2.5200 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
