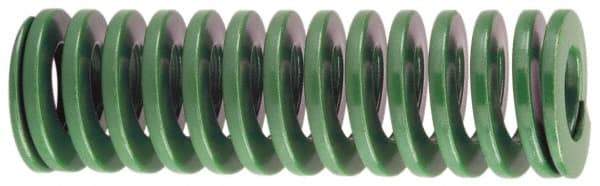

Dayton Lamina - 1-1/2" Hole Diam, 3/4" Rod Diam, 8" Free Length, Green Die Spring - 12.9 Lb Max Deflection, 3.2" Max Deflection, Light Duty, Chromium Vanadium Steel - Benchmark Tooling

Dayton Lamina - 1-1/2" Hole Diam, 3/4" Rod Diam, 8" Free Length, Green Die Spring - 12.9 Lb Max Deflection, 3.2" Max Deflection, Light Duty, Chromium Vanadium Steel


Item #: 76011311
Brand: Dayton Lamina
Model #: 9-2432-11
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (Inch) 1-1/2
Rod Diameter (Inch) 3/4
Free Length (Inch) 8
Load Type Light-Duty
Color Green
Maximum Deflection Load (Lb.) 12.90
Maximum Deflection (Decimal Inch) 3.2000
Travel To Solid Load (Decimal Inch) 4.0700
Wire Shape D-Shaped
Material Chromium Vanadium Steel
