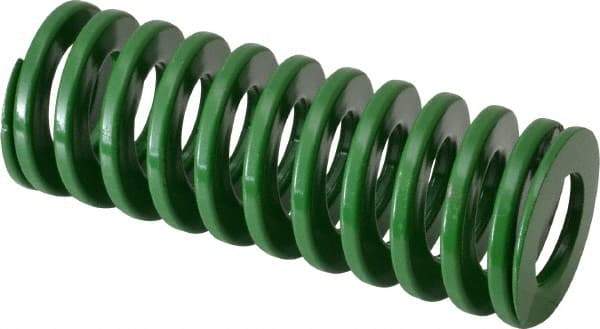

Dayton Lamina - 1-1/2" Hole Diam, 3/4" Rod Diam, 4" Free Length, Green Die Spring - 27.3 Lb Max Deflection, 1.61" Max Deflection, Light Duty, Chromium Vanadium Steel
Item #: 76011253
Brand: Dayton Lamina
Model #: 9-2416-11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 4 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (Lb.) | 27.30 |
| Maximum Deflection (Decimal Inch) | 1.6100 |
| Travel To Solid Load (Decimal Inch) | 2.0100 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
