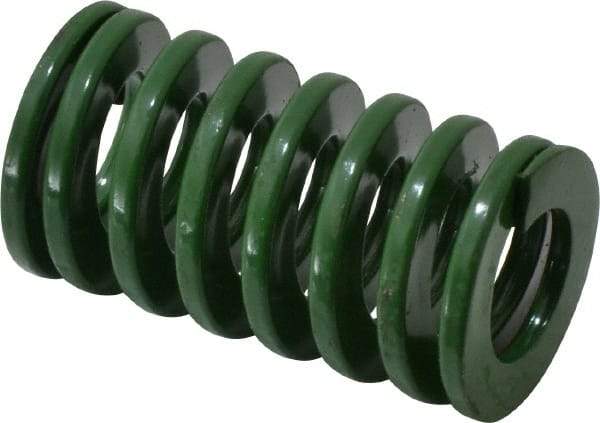

Dayton Lamina - 1" Hole Diam, 1/2" Rod Diam, 1-3/4" Free Length, Green Die Spring - 30.6 Lb Max Deflection, 0.69" Max Deflection, Light Duty, Chromium Vanadium Steel
Item #: 76010842
Brand: Dayton Lamina
Model #: 9-1607-11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1 |
| Rod Diameter (Inch) | 1/2 |
| Free Length (Inch) | 1-3/4 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (Lb.) | 30.60 |
| Maximum Deflection (Decimal Inch) | 0.6900 |
| Travel To Solid Load (Decimal Inch) | 0.8700 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
